Secure, Efficient, and Flexibly Adaptable to Various Cabinet Applications

Compact Multi-Card Reader for Secure Access in Any Cabinet

Motorized Bezel

Power Failure Card Return

Four-in-One Card Support

Get a Quote

CRT-310 Series

Compact Multi-Card Reader for Secure Access in Any Cabinet

Product Overview

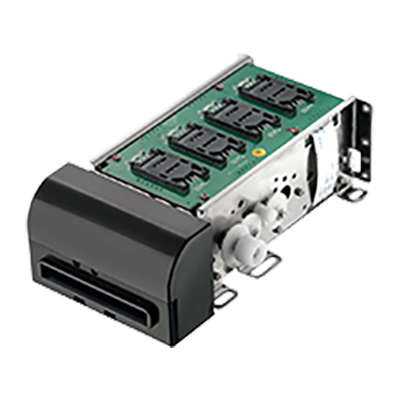

The CRT-310-(006) is a compact card reader for magnetic stripe, contact IC, contactless IC, and SAM cards. With a motorized bezel and power failure card return, it delivers reliable performance for self-service environments.

This multi-card reader fits into ATMs, ticketing kiosks, and payment terminals — one reader for multiple products. It reads four card types in one device — no need for separate readers. With EMV, PBOC, and IAP remote upgrade, it meets security standards and reduces on-site maintenance.

Key Benefits

Four-in-One Card Compatibility

Magnetic stripe, contact IC, contactless IC, and SAM cards — one reader handles them all.

Power Failure Card Return

Backup capacitor (>0.33F) automatically returns card to user when power drops below 10V for >15ms.

Long-Life Durability

500,000 transport cycles, 300,000 IC contact cycles

EMV & PBOC Certified

Secure financial transactions with globally recognized standards.

Compact & Lightweight

410g compact design for easy integration.

Product Features

Four-in-One Card Support: Supports contact, contactless (RF), magnetic stripe & SAM

Multiple Fault-Tolerance & Maintenance Features for Card Movement: Special handling for card blockages & Assistance for abnormal feeding/ejection

Power Failure Card Return

Motorized Bezel

EMV 4.1 L1 & PBOC 3.0 L1 Certified

IAP Remote Firmware Upgrade

Technical Specifications

Card types supported

Magnetic stripe card & Contact IC card & Contactless IC card & SAM card

Interface

RS-232

Transport lifetime

500,000 times

MTBF

>100,000 hours (electronics only)

Card speed

Up to 70cm/s

Power failure detection

<10V lasting >15ms

Working temperature

-10℃ ~ 50℃

Warped card adaptability

≤2mm

Certifications

EMV 4.1 L1, PBOC 3.0 L1
