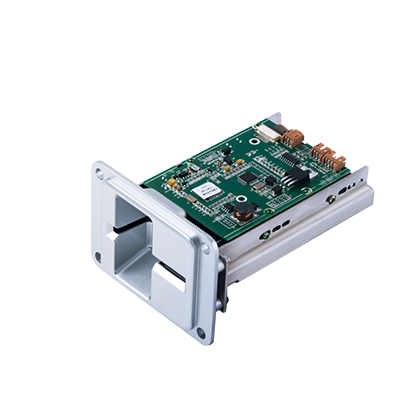

The CRT-288-K001 series is a manual insertion card reader for magnetic stripe, IC, and RFID cards. It features a motorized latch that secures cards while allowing forced retrieval, plus dual RS-232 and USB interfaces with auto-detection for easy integration.

It works with ticketing kiosks, access control systems, and payment terminals. One reader handles three card types — no need for separate devices. The motor latch prevents accidental card removal. With 500,000 cycles and EMV/PBOC certifications, it reduces downtime and replacement costs.

Key Benefits

Compact & Lightweight

Only 240g, easy to integrate into space-constrained devices.

EMV & PBOC Certified

EMV2000 Level1 and PBOC3.0 certified — bank-grade security.

Dual Interface with Auto-Detection

RS-232 + USB, auto-detection.

Motorized Latch & Release

Motor locks card securely; forced retrieval (>15N) won't damage the reader.

Long-Life Durability

500,000 cycles for magnetic head and RFID, 300,000 for IC contact.

Three-in-One Card Compatibility

Reads magnetic stripe, IC, and RFID cards in one device.

Product Features

Three-in-One card support: magnetic stripe + IC + RFID

Motorized card latch & Release

Dual Interface with Auto-Detection: RS-232 / USB

500,000 cycles magnetic head & RFID

300,000 cycles IC contact

RFID error rate <1/10,000

Warped card handling: up to 2mm

EMV2000 Level1 & PBOC3.0 Certified

Technical Specifications

Input power

DC 5V±5% or USB

Card types supported

Magnetic stripe & card IC card & RFID card

Interface

RS-232 / USB

Magnetic head lifetime

≥ 500,000 times

IC contact lifetime

≥ 300,000 times

MTBF

>100,000 hours (electronics part only)

Working temperature

0℃ ~ 50℃

Weight

Approx. 240g

Certifications

EMV2000 Level1, PBOC3.0

More Information

Leave a Message

Name*

Company Name*

Email*

Phone No.*

City

Country/Region*

Application Scenarios

Self-service payment kiosks

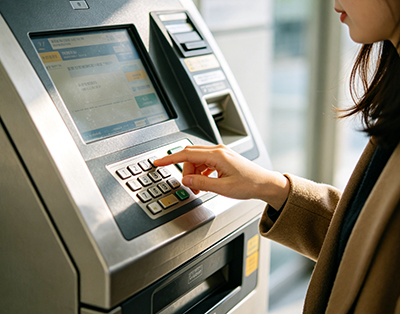

Ticketing vending machines

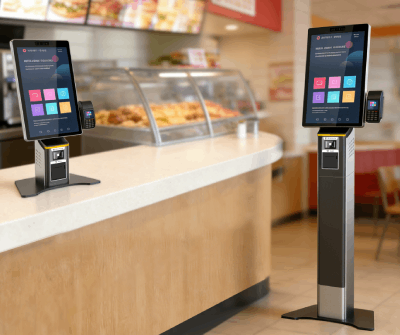

Access control terminals

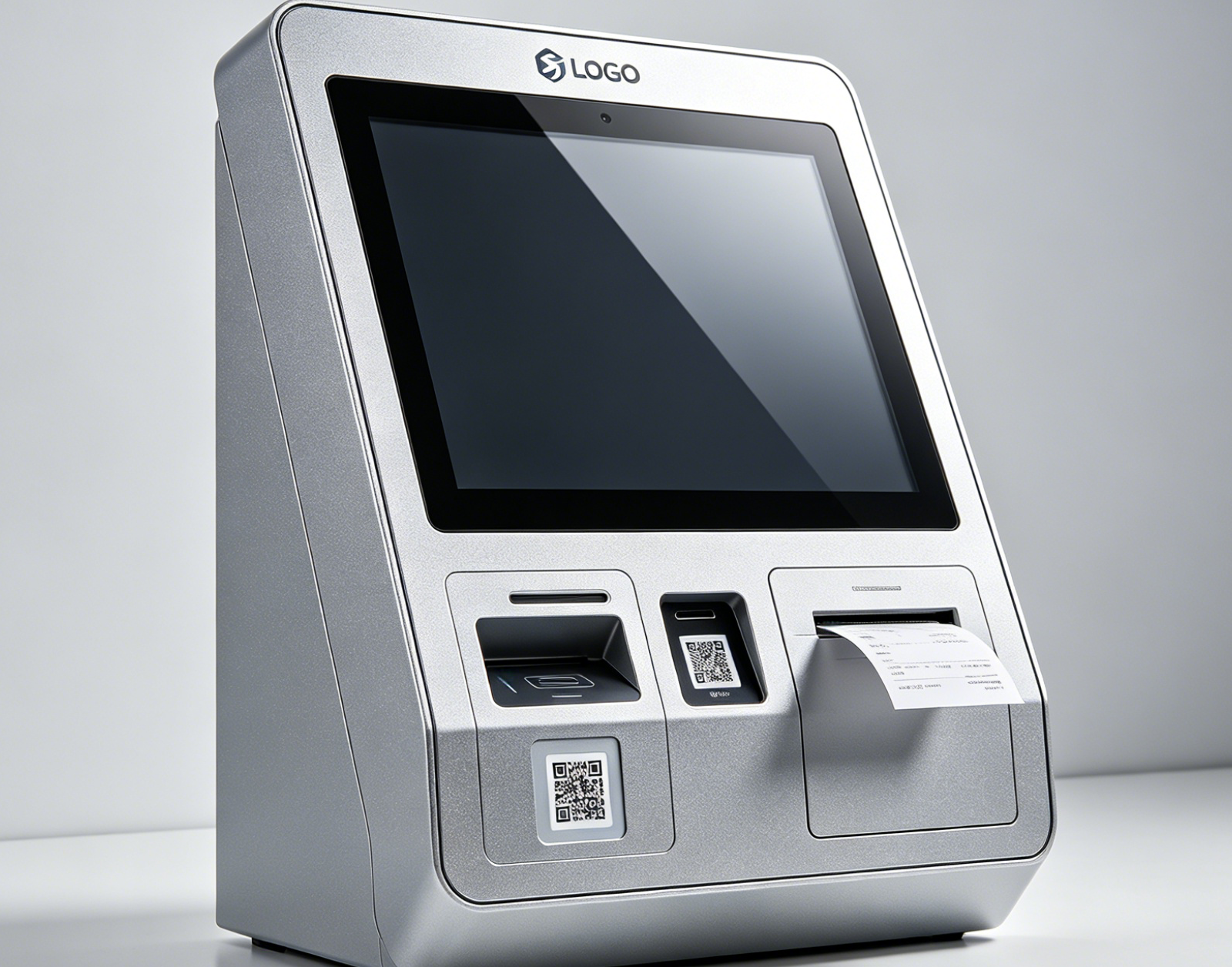

Membership card management kiosks

Applicable Industries

Retail & Membership Management

Access Control & Security

Public Transportation

Self-Service Kiosks
